Engineered for human insulin delivery, veterinary diagnostics, aesthetics, and surgical hair transplantation. Manufactured with automated optical vision assembly under ultra-strict quality control standards.
The global demand for specialized pen needles and micro-cannula cartridges has undergone a monumental shift. Driven by the rapid expansion of GLP-1 receptor agonist therapies (e.g., semaglutide, tirzepatide), insulin self-administration, veterinary diagnostic automation, and advanced aesthetic procedures (DHI hair transplantation and micro-needling), procurement teams worldwide require unprecedented levels of precision, supply integrity, and regulatory compliance.
China has solidified its position as the premier international hub for pen needle contract manufacturing (OEM/ODM). Tier-1 Chinese factories combine automated cleanroom molding, ultra-fine cannula wire-drawing, Japanese optical vision inspection, and integrated Ethylene Oxide (EO) sterilization under a single quality management system. Sourcing directly from top-tier Chinese exporters allows healthcare distributors, pharmaceutical brand owners, and hospital tender groups to achieve significant cost efficiency without sacrificing ISO 11608-2 non-clinical performance benchmarks.
At the core of pain-free injection technology lies micro-metallurgical refinement. Leading China pen needle factories utilize imported AISI 304 and 316L medical-grade stainless steel coils, subjecting them to cold-drawing, multi-stage electro-polishing, and precise chemical passivating.
Primary bevels (11°) and secondary lancet cuts (18°) are ground using CNC diamond wheels. Electro-polishing removes micro-burrs to achieve an surface roughness (Ra) under 0.1 µm, drastically lowering tissue displacement force.
By maximizing internal lumen diameter while preserving external gauge integrity (e.g., 32G ETW), internal fluid dynamics improve by up to 35%, significantly reducing manual thumb-push force during high-viscosity drug delivery.
Controlled application of Dow Corning medical-grade silicone oil (350–1000 cSt viscosity) creates a hydrophobic barrier, minimizing skin drag force to under 0.15 Newtons upon initial dermal entry.
| Needle Gauge (G) | Outer Diameter (mm) | Inner Diameter (ETW Standard) | Recommended Lengths | Primary Clinical Application |
|---|---|---|---|---|
| 34G Ultra-Fine | 0.18 mm | 0.105 mm | 3.5mm, 4mm | Pediatric Insulin, Micro-dose GLP-1, Facial Aesthetics |
| 33G Fine | 0.20 mm | 0.115 mm | 4mm, 5mm | Standard Diabetes Care, Subcutaneous Biologics |
| 32G Standard | 0.23 mm | 0.130 mm | 4mm, 5mm, 6mm | Universal Homecare Self-Injection Pens |

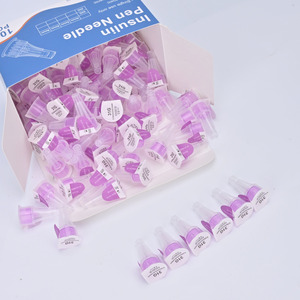

| 31G Universal | 0.25 mm | 0.145 mm | 5mm, 6mm, 8mm | High-Viscosity Formulations, Veterinary Pens |
| 30G High Flow | 0.30 mm | 0.175 mm | 8mm, 10mm, 12mm | Deep Subcutaneous Injection, Veterinary Diagnostics |
The global pen needle market is projected to surpass USD 4.8 Billion by 2030, registering a CAGR of 9.2%. Western healthcare systems and emerging market tender boards are tightening safety compliance (EU MDR 2017/745, US FDA 510k, ISO 11608-2:2022). Importers transitioning to direct Chinese OEM partnerships must align with suppliers offering complete technical STED dossiers and automated vision-tested zero-defect lines.
The unprecedented adoption of obesity and diabetes GLP-1 drugs requires 32G to 34G ultra-short needles (3.5mm-4mm). These extra-short lengths ensure reliable subcutaneous delivery without accidentally targeting intramuscular layers, reducing patient discomfort and variable drug absorption rates.

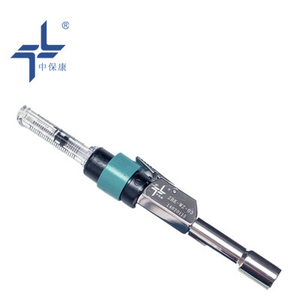

Occupational health directives in Europe and North America enforce safety-engineered needles. China’s premier factories now mass-produce dual-ended automatic passive safety shields that lock irreversibly upon withdrawal from both the patient side and pen hub side, shielding healthcare personnel from blood-borne pathogens.

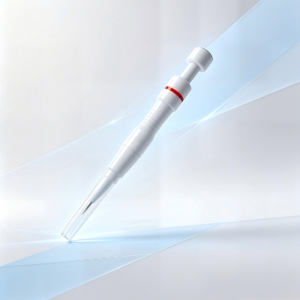

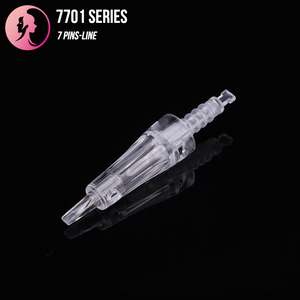

Beyond traditional pharmacology, micro-cannula manufacturing has reshaped cosmetic surgery. Hair transplant clinics increasingly favor Direct Hair Implantation (DHI) Choi pens equipped with custom slotted 0.8mm-1.2mm needles. In aesthetics, anti-backflow membrane cartridges dominate the microneedling market.
Top Chinese exporters are actively adopting eco-friendly medical-grade polymers (DEHP-free, phthalate-free PP) and weight-optimized blister foil paper. Furthermore, automated packaging lines now support Unique Device Identification (UDI) matrix codes directly printed onto bulk cartons to comply with global track-and-trace mandates.
Leveraging advanced manufacturing infrastructure synthesized from top export enterprises (such as ISO 13485 & CE-certified factories), China's premier manufacturers provide end-to-end operational capabilities that significantly reduce landed costs and accelerate regulatory approval.
Equipped with high-precision CNC spark erosion and Swiss milling machinery, factories can design, prototype, and scale custom needle hubs, bayonet locks, and specialized veterinary/aesthetic cartridges within 4 to 6 weeks.
From plastic injection molding to automated needle insertion, glue dosing, siliconization, and blister sealing, production occurs in strictly monitored positive-pressure cleanrooms aligned with ISO 14644 standards.
Industrial Ethylene Oxide chambers perform fully validated 24-hour cycles. Every export consignment is released with biological indicator reports, residue validation (<4 µg/g), and a 5-year sterile shelf-life guarantee.
High-speed industrial cameras inspect 100% of needle tips for hook points, burrs, blockage, and silicone uniformity at speeds exceeding 600 pieces per minute, guaranteeing zero-defect delivery.
Complete customization of primary peelable blister paper, inner 100-ct boxes, outer shipping cartons, GS1 barcodes, UDI printing, and country-specific Instructions for Use (IFU) in EN, ES, FR, DE, AR, and RU.
Dedicated regulatory teams furnish complete STED documentation, ISO 10993 biocompatibility test reports, Certificate of Free Sale (FSC), and batch Certificate of Analysis (CoA) for rapid customs clearance.
When auditing potential suppliers for high-volume government tenders or retail brands, procurement managers should evaluate suppliers against these core metrics:
| Evaluation Criteria | Tier-1 China Direct OEM Factory | Conventional Third-Party Traders |
|---|---|---|
| Quality Certification | Direct TÜV / SGS ISO 13485 & CE MDR in factory name | Borrowed certificates, sub-licensed documentation |
| Tooling & Customization | In-house CAD/CAM team; rapid 4-week mold turn-around | Incapable of design modifications; fixed stock only |
| Quality Control Controls | 100% CCD vision inspection; tensile & flow rate lab testing | Basic manual visual sampling upon receipt |
| Sterilization Assurance | On-site validated EO sterilization chambers (ISO 11135) | Outsourced third-party batch sterilization |
| Pricing & Margin | Factory-direct pricing; volume scale economies | 15% – 35% broker markup added |
| Lead Times | 3 – 4 weeks for repeat orders; 5 – 6 weeks for private label | Unpredictable delays due to multi-layer supply chain |
Clear technical answers to common questions asked by B2B buyers, medical importers, and hospital procurement managers.
Yes. Our pen needles are engineered in strict compliance with ISO 11608-2 (Needles for needle-based injection systems). The threaded hub features universal pitch geometry that securely locks onto all standard market pens, including Novo Nordisk (NovoPen, FlexPen), Eli Lilly (Humapen, KwikPen), Sanofi (SoloStar), Owen Mumford (Autopen), and major generic GLP-1/Insulin delivery devices.
Every shipment is backed by a complete regulatory dossier, including an ISO 13485:2016 Quality Management Certificate, CE Mark Certificate of Conformity, Certificate of Free Sale (FSC), Ethylene Oxide Sterilization Validation Report (ISO 11135), ISO 10993 Biocompatibility Test Reports, and a batch-specific Certificate of Analysis (CoA). Technical files are formatted in STED structure for quick submission to health authorities in Europe, Latin America, the Middle East, Africa, and Asia.
ETW and UTW engineering processes reduce the inner wall thickness of the stainless steel cannula while maintaining its outer diameter (OD). This expands the internal lumen diameter, allowing higher fluid flow rates with less manual plunger pressure. Patients experience faster injection times, decreased thumb force, and reduced tissue trauma—especially beneficial for viscous biologic formulations.
For standard neutral-packaged catalogue items, MOQs start at 50,000 units (or 1 mixed pallet). For full OEM private-label packaging (custom outer box, branded peelable blister paper, UDI coding), the standard MOQ is 100,000 units per SKU. Repeat orders typically ship within 3 to 4 weeks, while initial OEM orders take 5 to 6 weeks to allow artwork proofing, plate printing, and sterilization validation cycles.
We utilize multi-stage diamond CNC sharpening wheels followed by ultrasonic bath cleaning and electro-polishing to eliminate micro-burrs. Furthermore, 100% of our production passes through high-speed CCD camera optical vision inspection systems mounted directly on automated assembly lines. Any needle exhibiting a bent tip, hook point, surface scratch, or silicone imbalance is automatically rejected.

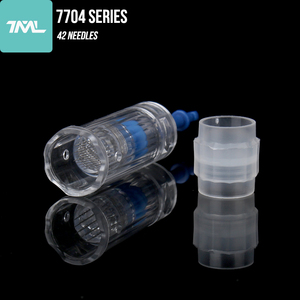

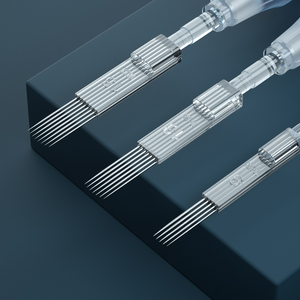

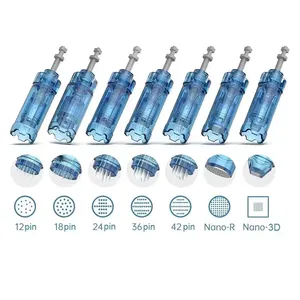

Yes. Our factory operates specialized micro-pin production lines for aesthetic and surgical applications. This includes replacement needle cartridges for Dr. Pen systems (M8S, A8S, A9, 12/18/24/36/42 pin, and Nano), professional tattoo cartridge needles with anti-backflow silicone membranes, and surgical DHI Choi hair transplant needles (0.8mm-1.2mm) with custom slotted bevels.
All single-use pen needles and cartridges undergo Ethylene Oxide (EO) gas sterilization in accordance with ISO 11135 standards. Individual medical-grade dialyzing blister paper guarantees a sterile barrier. When stored in a cool, dry place away from direct sunlight, the products carry a verified sterile shelf life of 5 years from the date of manufacture.
We support standard international commercial terms including FOB (Ningbo/Shanghai/Shenzhen), CIF, CFR, and DDP (Delivered Duty Paid) to your warehouse. Container consolidation, palletizing, temperature-controlled ocean freight, and expedited air cargo through major hubs are managed seamlessly by our export logistics team.
Elevate your medical supply chain with factory-direct pricing, complete ISO/CE regulatory support, and uncompromised micro-cannula engineering. Request sample packs, technical specs, and wholesale price quotes today.
